SCARICO SYSTEM per INDIAN CHIEF CLASSIC / VINTAGE / DARK HORSE del 2012

TRASMISSIONE, FRIZIONE

ENGINE, ENGINE ASSEMBLY - N121C/V/D ALL OPTIONS (INDIANENGINE12CC)

SCARICO SYSTEM

1

RevA-MUFFLER ASSY W/TIP

N50700037

9999999

Non disponibile

1

RevA-MUFFLER ASSY;W/TIP;MATBLK

N50700043

9999999

Non disponibile

2

RevC-COMMON VOLUME ASSY

N50700018

9999999

Non disponibile

3

RevA-FRONT HEADPIPE ASSY

N50700027

9999999

Non disponibile

4

RevA-OE MUFF TIP ASSYMATB

N50700044

9999999

Non disponibile

4

RevD-OE MUFFLER TIP ASSY

N50700024

9999999

Non disponibile

5

RevA-FR HT SHIELD ASSYMATBLK

N50700041

9999999

Non disponibile

5

RevB-FRONT HEAT SHIELD ASSY

N50700028

9999999

Non disponibile

6

RevA-R HT SHIELD ASSYMATBLK

N50700047

9999999

Non disponibile

6

RevB-REAR HEAT SHIELD ASSY

N50700029

9999999

Non disponibile

7

RevD-CV HEAT SHIELD ASSY

N50700020

9999999

Non disponibile

7

RevA-CV SHIELD ASSYMATTE BLK

N50700048

9999999

Non disponibile

8

RevA-FR HEADPIPE CLAMP48.5mm

N73137411

9999999

Non disponibile

9

RevA-MUFFLER CLAMP;100mm

N73137507

9999999

Non disponibile

10

RevB-MUFFLER BRACKET

N50737522

9999999

Non disponibile

11

RevA-EXHAUST GASKET

N50701319

9999999

Non disponibile

12

RevB-EXHAUST SNAP RING

N50737164

9999999

Non disponibile

13

RevA-EXHAUST FLANGE

N50737026

9999999

Non disponibile

14

HEATED OXYGEN SENSOR

4011853

£169,55 Prezzo unitario IVA inclusa

15

RevA-108mm WORM DRIVE CLAMP

N73137512

9999999

Non disponibile

16

RevA-51mm WORM DRIVE CLAMP

N50700003

9999999

Non disponibile

17

RevA-M8X1.25NUT FLG(79900020)

N70300006

9999999

Non disponibile

18

RevA-3/8-16X1. G8Z(79900005)(10)

N70196173

9999999

Non disponibile

19

RevA-3/8LCKWSH SPLT R(79900015

N70496904

9999999

Non disponibile

20

RevA-3/8FLTWSH TYP BN(79900011

N70496895

9999999

Non disponibile

21

RevA-M8X1.25X20(79900006)

N70100055

9999999

Non disponibile

22

RevA-M8 FLTWSH;NORM(79900012)

N70400009

9999999

Non disponibile

23

RevB-M8 LCKWSHR;SPLT(79900016)

N70400015

9999999

Non disponibile

24

RevB-M6X1.X16 8.8 CR(79900008

N70196231

9999999

Non disponibile

24

RevA-M6X1.X16 ;;Z/B(79900008)

N70100096

9999999

Non disponibile

25

RevA-M6FLTWSH NRM B(79900012)

N70400063

9999999

Non disponibile

25

RevA-M6 FLTWSHNRMCR(79900012

N70400008

9999999

Non disponibile

26

RevB-FRONT HEADPIPE BRKT

N50700034

9999999

Non disponibile

27

RevB-FRT HEADPIPE FRAME BRKT

N50700035

9999999

Non disponibile

28

RevA-M8 FLTWSH;NORM(79900012)

N70400009

9999999

Non disponibile

29

RevB-M8 LCKWSHR;SPLT(79900016)

N70400015

9999999

Non disponibile

30

RevA-M8X1.25X20(79900006)

N70100055

9999999

Non disponibile

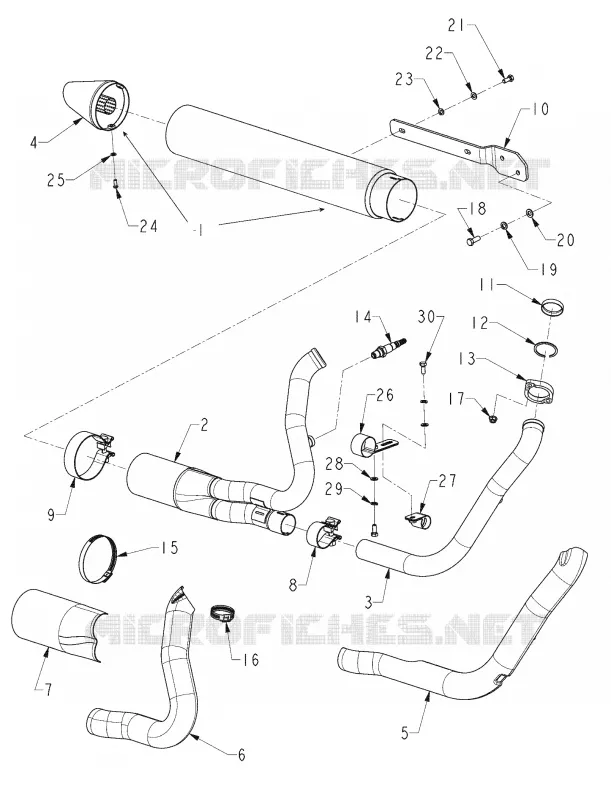

In questa pagina trovate lo schema dettagliato SCARICO SYSTEM INDIAN. Questa vista esplosa consente di identificare i diversi componenti necessari per la manutenzione della vostra macchina e di trovare rapidamente il relativo codice ricambio originale INDIAN.

Gli schemi non sono vincolanti. In caso di dubbi, i nostri professionisti sono a disposizione per rispondere alle vostre domande. Quando aggiungete un ricambio al carrello, assicuratevi di ordinare la quantità desiderata. Il prezzo unitario indicato è il prezzo per ogni riferimento per una quantità pari a 1.
